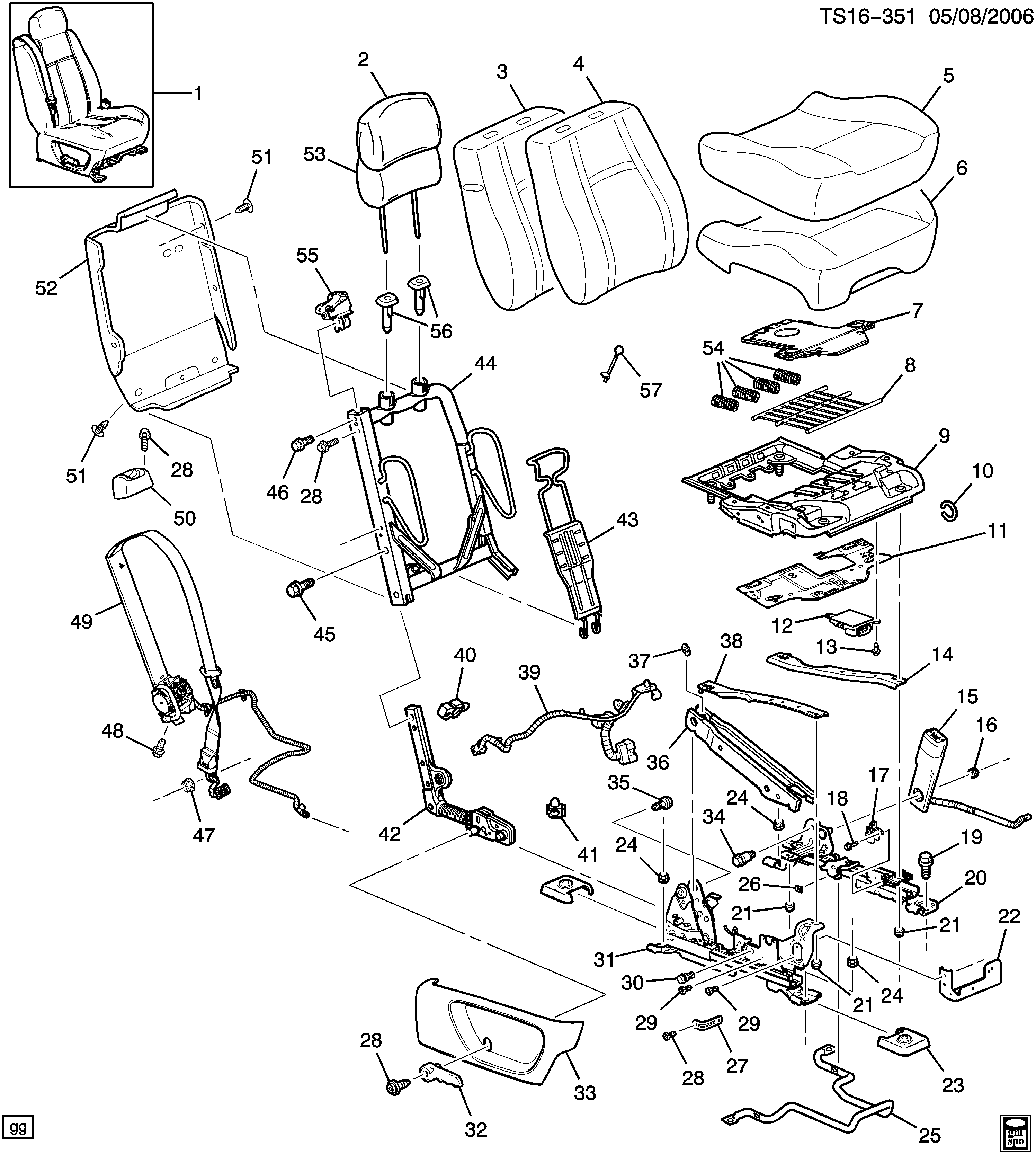

SCUNDOARE PASAGER/COJOC (AR9,EXC (V40)) — GMC Envoy (2WD) exc Denali (2008 - 2008)
Apăsați numărul pe schemă — rândul se evidențiază în listă.
| Nr. | Piesa | Cod | |
|---|---|---|---|
| 1 | Seat, pass(pewter) | 25803172 | |
| 1 | Seat, passenger (gray) | 20821474 | |
| 2 | Cover, seat rear right (ebony) | 89042423 | |
| 2 | Cover/seat rear(gray) | 89042202 | |
| 2 | Cover/seat rear(gray) | 19167590 | |
| 2 | Cover, seat rear right (ebony) | 19167588 | |
| 4 | Seat back cover (gray) | 19151337 | |
| 5 | Cover, seat cushion (gray) | 89042439 | |
| 5 | Cover, seat cushion (gray) | 89042274 | |
| 5 | Cover, seat cushion (gray) | 19208904 | |
| 5 | COVER,P/SEAT CUSH(EBONY)(16.724) | 19167867 | |
| 8 | Wire, seat cushion pad | 89043624 | |
| 9 | Frame, passenger seat cushion | 89043623 | |
| 10 | Ring, hog (3/4" c type, ss, blunt point) (f/seat cushion cvr hog) | 06616858 | |
| 11 | BRACKET,AIRBAG SEN(MAN PASS.), Position: R (fixare) | 89046098 | |
| 12 | Module kit, airbag front passenger presence sensor (with sensor)(includes 6,7) | 19168633 | |
| 13 | Bolt, seat mounting (M4 x 12.5) (fixare) | 89042167 | |
| 14 | Reinforcement, p/seating rear (inner/outer) | 89042212 | |
| 15 | Belt kit, seat adjustment (BKL SI)(gray) | 19148786 | |
| 15 | Belt kit, seat adjustment (BKL SI)(EBONY) | 19148785 | |
| 15 | Belt kit, power seat (rear left) (cashmere) | 19148784 | |
| 16 | nut, seat belt adjuster (BKL SI) (M12X1.75) (hex flange head) (14.875) (fixare) | 12531799 | |
| 17 | Sensor kit, airbag front passenger position | 19180158 | |
| 18 | Bolt, thread P/SEAT AIRBAG SUPPRESSION MDL(8-32X5/8) (fixare) | 89046203 | |
| 20 | Adjuster,inner seat (inner)/ (2 way manual) | 89042234 | |
| 21 | nut,hfh,m8x1.25,8.9 thk,17.6 o.d.,10 stl,gmw3200,prev torque (adjr/seat)(acdelco #11609746) (fixare) | 11609746 | |
| 22 | Bracket, power seat wiring harness (fixare) | 89039522 | |
| 23 | Cover, front seat adjuster finish (gray) (4=passenger side & 4=driver side) | 15133276 | |
| 23 | Cover, f/seat adjr fin (ebony) (4=pass side & 4=drvr side) (**vpi 1-877-846-8243) | 15133275 | |
| 24 | nut, hex, lock with conical washer, M12X1.75X16.75, 28 OD, 10, 6173M, nylon insert (seat) (fixare) | 11519879 | |
| 25 | bar, internal and external seat position adjustment tie | 89042233 | |
| 27 | Bracket, seat adjustment (manual) (fixare) | 89042219 | |
| 28 | Bolt, seat mounting (M4.2 x 1.41 x 19.0) (16.686) (fixare) | 88949546 | |
| 29 | Bolt, recliner seat (M5X0.8X10) (fixare) | 88949560 | |
| 30 | Bolt, recliner seat (M10X1.50-6G) (shoulder bolt with bushing) (fixare) | 88949559 | |
| 31 | Adjuster, manual seat adjustment | 89042236 | |
| 32 | Handle for seat recline (black) | 88949346 | |
| 33 | Cover, p/seat adjr fin (ebony) (manual) | 89042244 | |
| 33 | Cover/seat adjustment fin (gray) (manual) | 89042242 | |
| 34 | Bolt, seat adjustment (fixare) | 88949561 | |
| 35 | Bolt, seat recliner (M14 x 64.5) (shoulder bolt, hex head) (fixare) | 88949563 | |
| 36 | Bracket, seat recliner (plastic snap-on washer 89039523) (with slot) (fixare) | 89039542 | |
| 37 | Washer/seat(snap on)(plastic snap-on)(16.679) (fixare) | 89039523 | |
| 38 | Reinforcement, headrest rear seat(inside) | 89042213 | |
| 39 | Harness, power seat wiring | 89026429 | |
| 40 | Clip, seat wire (6 mm) (nylon, push-in delphi) (holds one wire) (fixare) | 88949567 | |
| 42 | Recliner, front seat | 19151342 | |
| 43 | Support for passenger seat lumbar | 89042268 | |
| 45 | Bolt, recliner seat adjust (fixare) | 88983477 | |
| 49 | Belt kit, power seat (retract si) (with pre-tensioner) (cashmere) (for mating connector 15306044) | 19177469 | |
| 49 | Belt kit, front seat (retracting)(with pre-tensioner)(ebony)(ebony webbing with ebony bezel) | 19177470 | |
| 49 | Belt kit, for seat (RETR SI) (with pre-tensioner) (gray) | 19177471 | |
| 50 | Bezel/seat shoulder belt option (ebony) | 89042247 | |
| 50 | Bezel/seat shoulder belt opg (gray) | 89042245 | |
| 51 | Retainer, seat black inner panel 22.86 mm x 17.78 mm x hole diameter 6.35 mm (fixare) | 88948904 | |
| 52 | Panel, inner seat trim black (hardback) | 89045017 | |
| 53 | Brake pad, rear seat belt | 88979706 | |
| 54 | Seat cushion pad support spring | 88948986 | |
| 55 | Bracket, shoulder belt retainer (fixare) | 88949336 | |
| 56 | Guide, seat rear right (cashmere) (without button) | 89042189 | |
| 56 | Guide/seat right/restoration (gray) (with button) | 89043635 | |
| 56 | Guide/seat right side (gray) (without button) | 89043637 | |
| 56 | Guide/seat right/restoration(ebony)(with button) | 89042186 | |
| 56 | Guide/seat rear (ebony) (w/o button) | 89042188 | |
| 57 | Clip, seat adjustment wire harness (fixare) | 89043628 |
